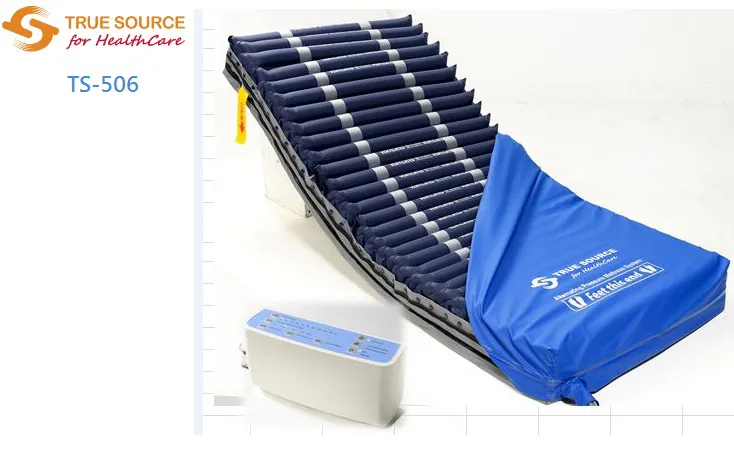

TS-506 Advanced Digital Alternating Air Mattress & Pump System

Advanced Digital Alternating Air Mattress & Pump System (TS-506) includes:

Light sensor position technology and warning function system
Modular design for convenient production and easy maintenance
Inner pressure monitoring system and power failure memory restore function
Patented internal mechanism is featured with low vibration, low noise, low power consumption which provide dignified care for users
Double cell chamber design optimizes user safety and comfort, it aims to protecting the users from “bottoming out”
4” 29pcs air cells with static base and integrated foam base that brings user more comfort and security

Technical Specification:

*Advanced Digital Alternating Air Mattress & Pump System*
Control Unit	Input Power	AC 110V/60Hz or AC220-240V/50Hz
	Power Consumption	10W max.
	Dimensions	L26 x W8 x H13cm
	Weight	Approx. 1.5 kgs
	Air Flow Rate	Approx. 8LPM
	Appliance Category	Class I. Type BF
	Certification	CE, EN60601-1, EN60601-1-2, *IEC 60601-1 Edition 3.1* FCC 47 CFR PART 18
	Model	TS-506 4" Replacement
Air Mattress	No. of Cells	4" 29 cells
	Dimensions	L200 x W85 x H17cm
	Weight	Approx. 9.7kgs
	Cell Materials	Nylon / TPU
	Cover Materials	Polyester / PU
	Weight Capacity	30-180 kgs
	Emergency	CPR Valve for rapid deflation
	Static Head Cells	Provides stability under the head/neck and reduce sleep disturbance

Functionality:

Alternating function offers 5, 10, 15, 20 minutes cycle time to choose from
Visual and Audible safety alarm system, designed to auto detect and alert to caregiver in case of abnormal power failure or low pressure
Nursing / Auto Firm Mode provides maximum inflate to assist user in transport or other nursing procedures. The Max. inflate function will be auto canceled after 30 minutes and return to last setting selected.
Panel Lock can locks out all button functions to prevent accidentally changes , except for Nursing/ Auto Firm Mode. Press the button again to unlock
Auto Dual Mode, the function enables Alternating and Static Modes to rotate every one hour.
