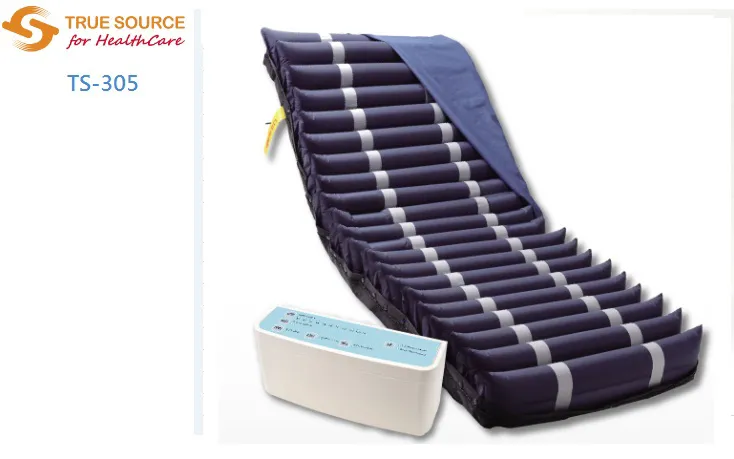

TS-305 Digital/Knob Alternating Air Mattress & Pump System

TS-305 Digital/Knob Alternating Air Mattress & Pump System

Digital/Knob Alternating Air Mattress & Pump System (TS-305) is constructed with a large number of air cells and a denser spacing between air cells so that the body could be supported more evenly and more comfortable. It consists of patented internal pressure sensor and feedback system that can monitor the air pressure variation all the time.

Retainer air cell present in this overlay air mattress & pump system prevents air cell from being over-inflated as well as reinforce each air cell of the mattress proportionally inflated. Safe external dual-fuse design present in digital alternating overlay air mattress enhances the protection ratings and allows the fuses to be replaced directly without inconvenience for disassembling the machine

Technical Specification:


Digital Alternating Air Mattress & Pump System
Control Unit   Input Power   AC 110V/60Hz or AC220-240V/50Hz
  Power Consumption   10W max.
  Dimensions   L26 x W8 x H13cm
  Weight   Approx. 1.5 kgs
  Air Flow Rate   Approx. 8LPM
  Appliance Category   Class I. Type BF
  Certification

  CE, EN60601-1, EN60601-1-2, IEC 60601-1 Edition 3.1 FCC 47 CFR PART 18
  Model TS-305  5” Overlay
Air Mattress   No. of Cells   5" 20 cells
  Dimensions   L200 x W85 x H13cm
  Weight   Approx. 4.1kgs
  Cell Materials   Nylon / TPU
 Cover Materials   Polyester / PU
  Weight Capacity   30-150 kgs
  Emergency   CPR Valve for rapid deflation
  Static Head Cells   Provides stability under the head/neck and reduce sleep disturbance


Functionality:


  • Alternating function operates automatically after initial inflate completely & 10 mins cycle time is pre-set.
  • Based on users weight and comfort needs to select the best suited Weight Setting
  • Visual and Audible safety alarm system, designed to auto detect and alert to caregiver in case of abnormal power failure or low pressure
  • Nursing / Auto Firm Mode provides maximum inflate to assist user in transport or other nursing procedures. The Max. Inflate function will be auto canceled after 30 minutes and return to last setting selected.
  • Auto Dual Mode, the function enables Alternating and Static Modes to rotate every one hour.
