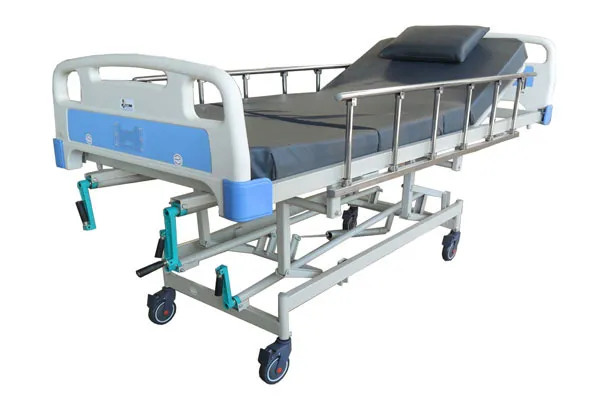

I.C.U. Bed

I.C.U. Bed is available in the size of 2055 cm (81") x - 90cm (36") x H - 45cm (18") to 72cm (29") and ABS BOWS & All Powder coated. All stainless steel.



Working specifications of I.C.U. Bed are:





  • The main frame made from 25mm x 50mm x 1.22 mm (18 SWG) M.S. rectangular tubes.
  • Four-section top made from 1.22 mm (18 SWG) Sheets. Sheets uniformly perforated suitably fitted to the top.
  •  I. V. location and urine bag hook provided.
  • Backrest, knee rest, head low / up, height adjustment maneuvered By 4 separate screw system provided with thrust ball bearings.
  • Additionally the leg rest section adjusted on two 10mm Æ shaft.
  • Height adj. By screws easily wind able by independent handle,
  • Height adj. on heavy links made from 50mm x 50mm square rigid 16 SWG CRC pipes.
  • Additionally antigravity spring provided for easy operation.
  • 4" thick mattress made by good quality rexin, quire & foam. 4 pieces machine stitching.
  • Height adjustable I.V. Attachment.
  • 125 mm Æ breakable casters, two with breaks.
  • Heavy collapsible side railing.
  • 4 corner Side buffer wheels.
