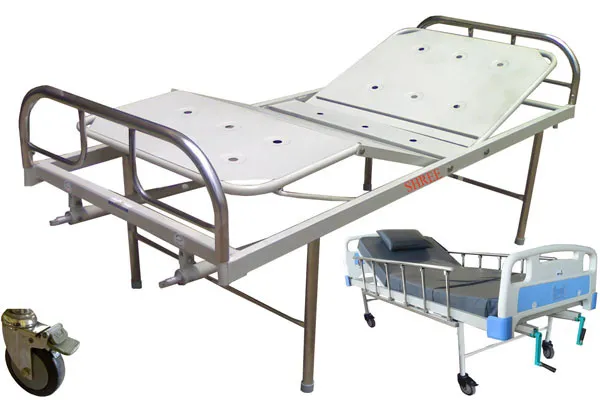

Fowler Bed

Fowler Bed is available in the size 198 cm (78") x - 84cm (33") x H - 56cm (22") with options like



  • All Powder coated.
  • Bows steel.
  • Bows & legs steel.
  • Bows, legs, side channel steel.
  • Top Ecolink frame, Bows, legs steel.





Working specifications for Fowler Bed:





  • The main frame made from 25mm x 50mm x 1.22mm (18 SWG) M.S. rectangular tubes.
  • Four-section top made from 1.22mm (18 SWG) Sheets. Uniformly perforated, suitably fitted to the top.
  • I.V. location and urine bag hook provided.
  • Backrest, knee rest maneuvered by 2 separate screws. Provided with thrust ball bearing. Both screws easily wind able by independent handle.
  • Bows, legs made from 1.25 Æ x 1.22mm (18 SWG) Pipes.
  • Nylon unbreakable shoes for legs.
  • Pre-treated in seven tanks chemical process & epoxy powder coated.
