MN Life Care Products Pvt. Ltd

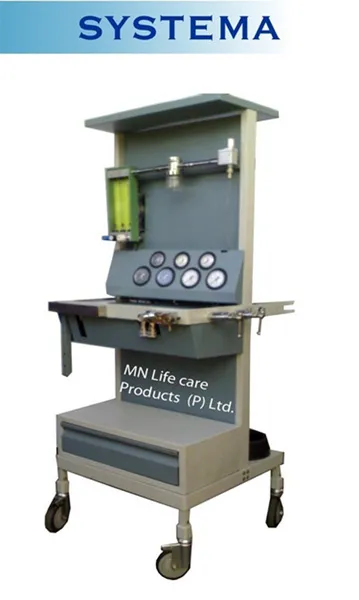

Systema

Systemahas MS structure provisions for  Tec vaporizer, Circle absorber. Features of SYSTEMA are:

• 3 Tube Hypoxia guard Rota meter-pneumatic device ensures no nitrous oxide flow, if oxygen flow is lower than 0.5ltr/min. approx. Minimum 25% (+5%) Oxygen (1:3 mixed ratio between O2 & N2O) in Surgery gas mixture.
• Oxygen locked N2O supply Oxygen failure warning device.
• Higher efficiency forged regulators & yokes with M.S. fittings.
• Panel mounted high & low pressure display gauges and audio visual Oxygen failure warning device.
• High precision pressure relief cum non return valve.
• Halothane Change over mechanism with oxygen flush (open & close circuit).
• Oxygen & Nitrous oxide gas inlet point each 3 nos. & 1 no. Airgas Point at the back.
• Standard Magill's circuit, all rubber antistatic tested.
• Trolley made of power coated M.S. table -  Top tray, modified monitoring accessories.
• Drawer top M.S. steel tray 5 dia antistatic breaking castor wheel.
• Oxygen outlet for driving ventilator (Double)
• Large diameter (63mm) O2 & N2O gauge each two for high visibility & clarity O2 & N2O operating pressure (4.22kgf/cm2) display gauge each one.
• Central pipe line connection & 10 liters W/C cylinder carrier facility.

Available in size of  1690mm x 800mm x 640mm (HxWxD) or, 1450mm x 800mm x 600mm
